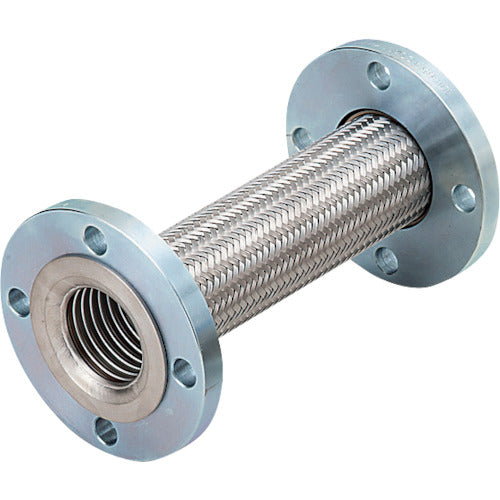

NK Standard Flange Type Flexible Hose (Color Type) Flange 10K/SS400 (Liquid Contact Part SUS304) 40A x 500L NK-3100/10K-SS400-40A-500L 1 pc

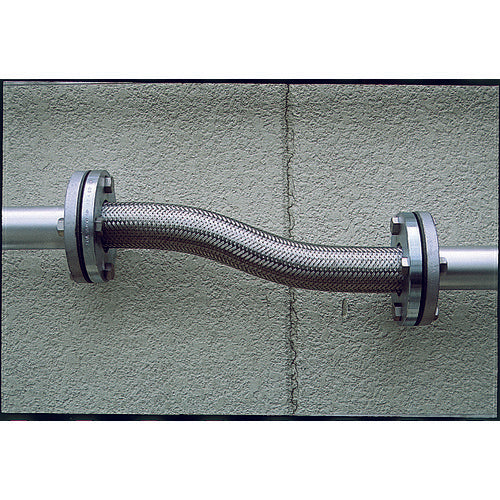

Catalog number: NK-3100/10K-SS400-40A-500L Features: ●The flanges on both ends are loose type. ●We can also accommodate diameters and lengths other than those listed. ●All liquid-contacting parts are stainless steel. Applications: ●For general piping such as absorbing misalignment. Specifications: ●Nominal diameter A: 40 ●Nominal diameter B: 1 1/2 ●Total length (mm): 500 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -20 to 350 ●Connection method: Flange (JIS10K) ●Compatible fluids: Cold and hot water, steam, oil, air, gas (limited to non-corrosive fluids) ●Nominal diameter (mm): 48.60 Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Flange part: Carbon steel (SS400)
