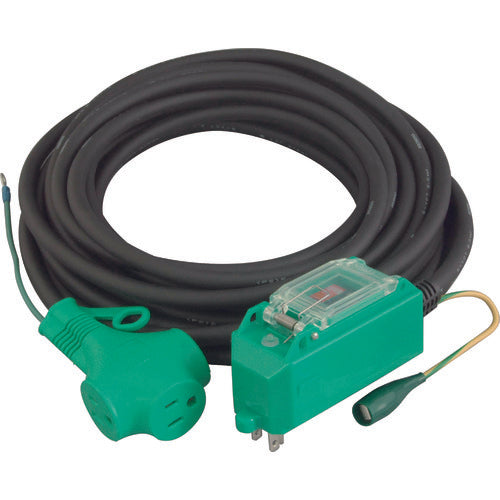

NICHIDO Plug-in Breaker Overload and Leakage Protection (15A/15mA Sensitivity) 10m PIPB-EK10E 1 Piece

Catalog number: PIPB-EK10E Features: * Simply connect to a drum, cord, or tool to provide a safe and secure earth leakage breaker. * Comes with a 10m electric wire. * In the event of an earth leakage, it can stop the power supply to the device without tripping the main breaker. * The breaker section has a built-in pop-in plug, so it can be used with both 2-core and 3-core outlets. * Depending on the connection conditions, the main breaker may trip first. Uses: ● Power tools Specifications: ● Wire type: SVCT ● Wire length (m): 10 ● Wire thickness (mm2): 2.0 ● Wire core count (C): 3 ● Outlet rating: 2P, 15A, 125V with earth ● Outlet shape: [three-phase 1] ● Number of outlets: 3 ● Earth leakage protection: Yes ● Overload protection: Yes ● Operation time: Earth leakage within 0.1 seconds ● Earth leakage circuit breaker specifications: Combined overload and earth leakage protection ● Triple outlet (three outlets) ● Indoor type ● Operation time: Earth leakage within 0.1 seconds ● Combined overload and earth leakage protection Materials/Finish: ● Body: ABS resin ● Wire: SVCT 2.0mm2 x 3 cores Caution: ● Indoor type. Do not use outdoors in the rain.
