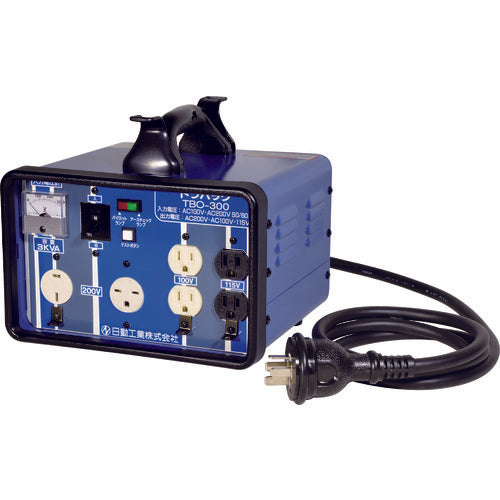

NICHIDO Transformer, Step-up/Step-down Flexible Transformer, Indoor Type, 3KVA, with Safety Breaker, TBO-300, 1 Unit
NICHIDO Transformer, Step-up/Step-down Flexible Transformer, Indoor Type, 3KVA, with Safety Breaker, TBO-300, 1 Unit
Regular price
¥99,528
Regular price
Sale price
¥99,528
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: TBO-300 Features: ● A freely step-up/step-down transformer. (Manual input switching type) ● Converts input voltages of 100V and 200V to outputs of 100V, 115V, and single-phase 200V. Applications: ● With this one unit, you can use 100V and 200V tools without worrying about the voltage of the power supply equipment. Specifications: ● Capacity (kVA): 3 ● Current (A): 30 ● Input/Output (V): 100, 200 / Single phase 200, 100, 115 ● Capacity (kVA) 1 hour rating: 3 ● Capacity (kVA) 30 minute rating: 3 ● Capacity (kVA) continuous rating: 3 ● Output current (A) continuous rating: 100V: 21 ● Protection function: Safety breaker 30A ● Primary wire specifications: SVCT 3.5mm [square] x 3 cores x 2m ● Type: Flexible step-up/step-down type ● Width (mm): 260 ● Depth (mm): 235●Height (mm): 230●Capacity: 3KVA●Input plug: Three-phase 200V grounded 3P20A●Input wire (m): 2●Rated current: 2-hour rated 100V: 30A (continuous rated 100V: 21A)●Output outlet: Single-phase 200V (without earth) x 1/Single-phase 200V (with earth) x 1/100V x 2/115V x 2●Adapter specifications: (Input) Three-phase 200V grounded 3P20A 250V (Output) Single-phase 100V grounded 2P15A 125V●Indoor type Material/Finish: ●Body: Steel●Wire type: SVCT 3.5mm2 x 3 core Set contents/Accessories: ●Conversion adapter for 100V input Note: ●Switching between input voltages of 100V and 200V is manual. ●When connecting 100V to the input side, please use the included conversion adapter. ●The input plug is three-phase 200V, but the wiring is single-phase 200V.
