NICHIDO Transformer Step-down Dedicated Torapack 2KVA TB-200D 1 unit

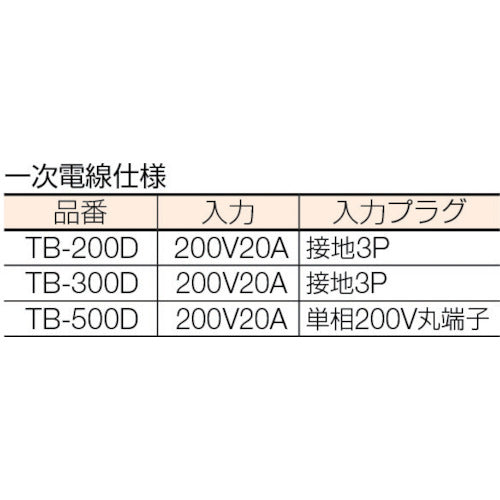

Catalog number: TB-200D Features: ●Can be used continuously. ●100V stepped down from 200V eliminates voltage drop and prevents overheating and burning of power tools. ●When there is only 200V at the work site and you want to use a 100V power tool, stepping down the 200V will reduce the voltage drop and provide a stable power supply. ●By adopting a lightweight and compact ring transformer, the weight is 1/5 to 1/2 that of conventional transformers. Applications: ●When there is only 200V at the work site and you want to use a 100V power tool, stepping down the 200V will reduce the voltage drop and provide a stable power supply. Specifications: ●Capacity (kVA): 2 ●Current (A): 20 ●Input/output (V): 200/100 x 2, 115 x 2 ●Capacity (kVA) 1 hour rating: 2 ●Capacity (kVA) 30 minute rating: 2 ●Capacity (kVA) continuous rating: 2 ●Protection function: Safety breaker 10A ●Primary wire specifications: VCTF 2.0 mm2 x 3C x 1.8 m ●Type: For step-down only ●Input (V): 200V 20A ●Input plug: Grounded 3P ●Indoor type Caution: ●Due to the characteristics of ring transformers, the inrush current is large so use a breaker with a large capacity.
