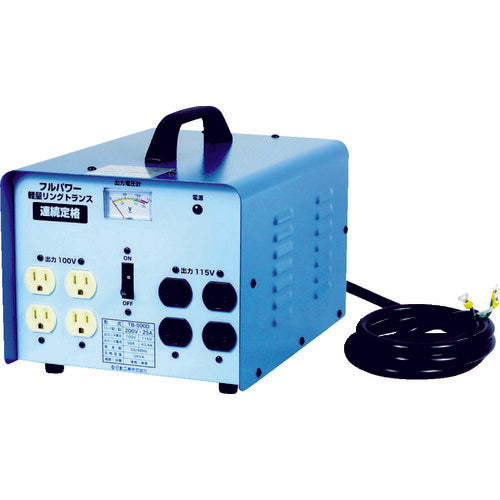

NICHIDO Transformer Step-down Dedicated Torapack 5KVA TB-500D 1 unit

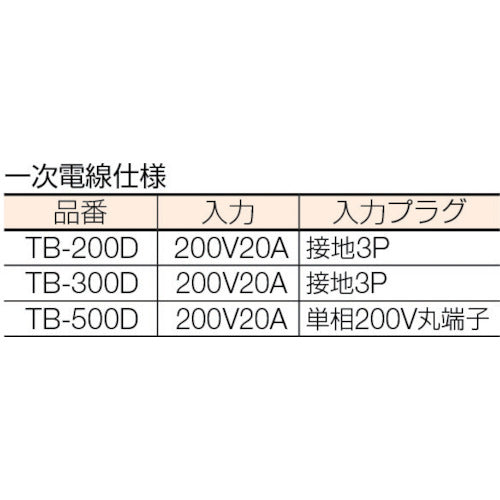

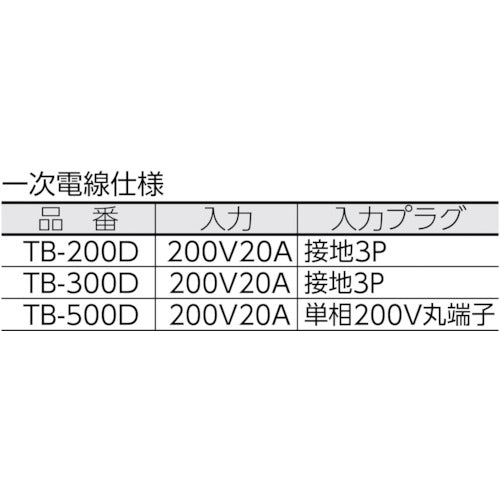

Catalog number: TB-500D Features: ●Can be used continuously. ●100V stepped down from 200V eliminates voltage drop and prevents overheating and burning of power tools. ●When there is only 200V at the work site and you want to use a 100V power tool, stepping down the 200V will reduce the voltage drop and provide a stable power supply. ●By adopting a lightweight and compact ring transformer, the weight is 1/5 to 1/2 that of conventional transformers. Applications: ●When there is only 200V at the work site and you want to use a 100V power tool, stepping down the 200V will reduce the voltage drop and provide a stable power supply. Specifications: ●Capacity (kVA): 5 ●Current (A): 50 ●Input/output (V): 200/100 x 4, 115 x 4 ●Capacity (kVA) 1 hour rating: 5 ●Capacity (kVA) 30 minute rating: 5 ●Capacity (kVA) continuous rating: 5 ●Protection function: Safety breaker 30A ●Primary wire specifications: VCT 3.5mm2 x 3C x 3.0m ●Type: For step-down only ●Input (V): 200V 20A ●Input plug: Single-phase 200V round terminal ●Indoor type Caution: ●Due to the characteristics of ring transformers, the inrush current is large so use a breaker with a large capacity.
