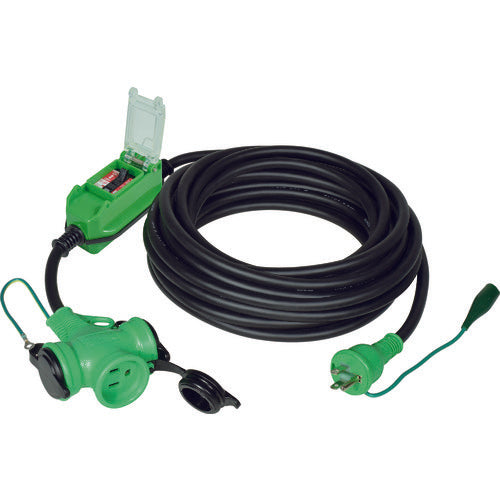

NICHIDO Waterproof Extension Breaker 100V Overload and Leakage Protection 10m PBW-EK10-T 1 Piece

Catalog number: PBW-EK10-T Features: ● A three-port outlet with a breaker (ELB) dedicated to earth leakage protection (15mA sensitivity) to prevent dangerous earth leakage accidents. ● A plug that can be used with both 2-core and 3-core. Applications: ● For sites where earth leakage protection is mandatory. ● When you want to provide earth leakage protection to equipment that does not have such protection function. Specifications: ● Wire type: SVCT ● Wire length (m): 10 ● Wire thickness (mm2): 2.0 ● Number of cores (C): 3 ● Outlet rating: 2P with cap, 15A, with earth ● Outlet shape: [three-phase 1] ● Number of outlets: 3 ● Leakage protection: Yes ● Overload protection: Yes ● Earth leakage circuit breaker specifications: Combined leakage, overload, and short circuit protection ● Wire type: SVCT ● 2-pole, 3-pole combination type (pop-in plug) ● Rated voltage: AC100V ● Outdoor type ● Operation time: Leakage within 0.1 seconds ● Breaker sensitivity: EK type 15A/15mA, EB type 15mA ● PSE mark product Material/Finish: ● Breaker cover: ABS resin ● Wire type: VCT2.0mm2 Note: ● When using outdoors, use the specified waterproof plug for the plug on the device to be connected. (If the shape does not match, it will not be rainproof or dustproof.)
