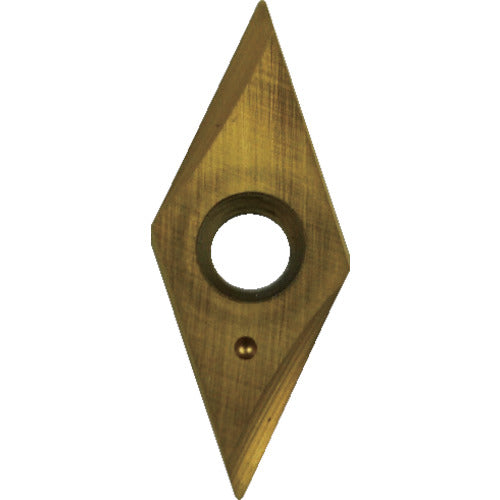

Nine9 Engraving Cutter Insert V06006T1W06-NC2071 5 pieces

Catalog number: V06006T1W06-NC2071 Features: ● Insert for NC spot drill holder. ● Special insert design ensures long life. ● Unique insert design and coating enable high speed operation. Applications: ● For engraving on CNC combined lathes and machining centers. Specifications: ●Coating: TiN ●Thickness (mm): 2 ●Minimum cutting depth: 0.2 ●Minimum machining diameter: 0.65 ●Number of corners: 2 ●Compatible holder: 99619-V045-06 ●Carbide material: K20F ●Length (mm): 6.35 ●Tip angle (°): 60 ●Nose R (mm): 0.2 ●Maximum machining diameter: 2.7 ●Length: 6.35mm ●Thickness: 2mm ●Nose R: 0.2mm ●Insert for engraving cutter ●NC2071: Low carbon steel, alloy steel, stainless steel, aluminum, etc. HRC30 or less ●NC9031: Low carbon steel, alloy steel, stainless steel, aluminum, plastic, etc. HRC30 or less ●NC2032: Carbon steel, alloy steel, cast iron, etc. HRC30 to 40 or less Material/Finish: ●Carbide (K20F)
