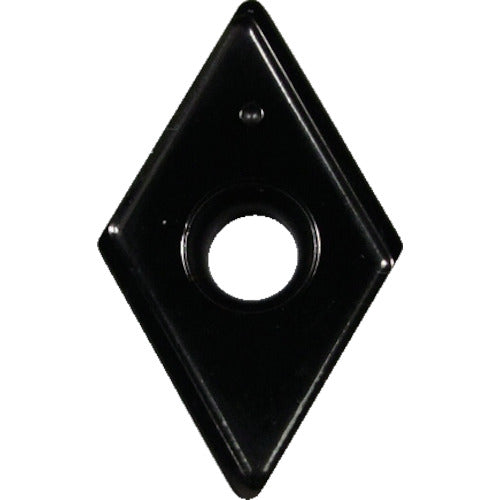

Nine9 NC Spot Drill 60° Insert V9MT12T3CT-NC9076 5 pcs

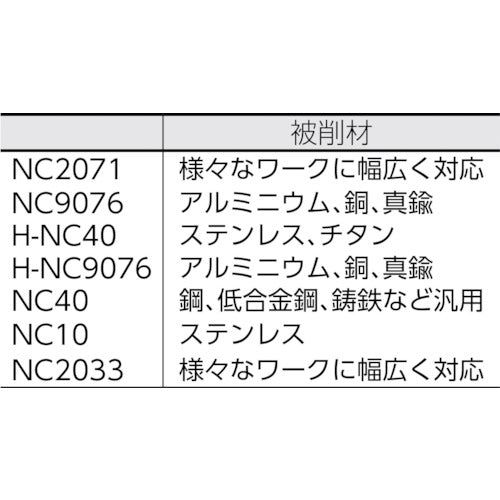

Catalog number: V9MT12T3CT-NC9076 Features: ● Insert for NC spot drill holder. ● Special insert design provides long life. ● High speed is possible with original insert design and coating. Applications: ● For chamfering, grooving, V-groove processing, and engraving on CNC lathes, CNC combined lathes, and machining centers. Specifications: ● Coating: DLC ● Thickness (mm): 3.97 ● Number of corners: 2 ● Nose R (mm): 0.8 ● Tip angle (°): 60 ● Length (mm): 12.7 ● Compatible holder: 99616-13V ● Maximum machining diameter (mm): 13 ● Carbide material: K20F ● Pilot hole size: - ● Insert for 60° ● NC2071: Widely compatible with various workpieces ● NC9076: Aluminum, copper, brass, etc. Material/Finish: ● Carbide (K20F)
