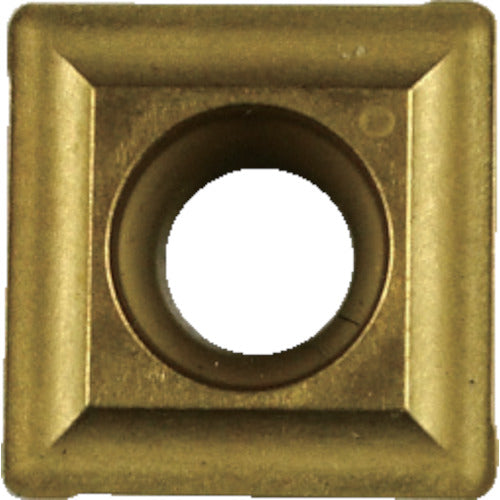

Nine9 NC Spot Drill 90° Insert Length 11mm N9MT11T3CT-NC40 5 pieces

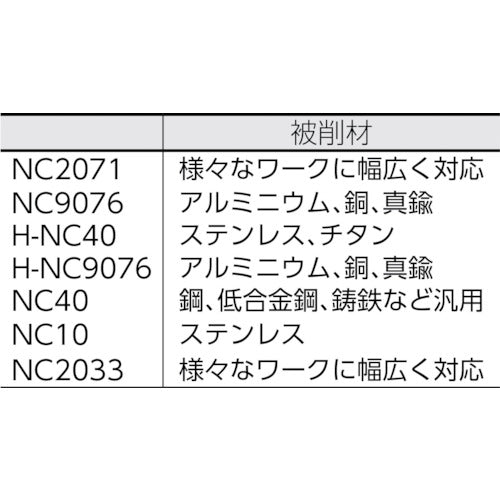

Catalog number: N9MT11T3CT-NC40 Features: ● Insert for NC spot drill holders. ● Extremely long life due to special insert design. ● High speed possible due to original insert design and coating. Applications: ● For chamfering, facing, V-groove processing, and engraving on CNC lathes, CNC combined lathes, and machining centers. Specifications: ●Coating: TiN ●Maximum machining diameter (mm): 14 ●Length (mm): 11 ●Carbide material: P35 ●Thickness (mm): 3.97 ●Number of corners: 4 ●Nose R (mm): 0.8 ●Tip angle (°): 90 ●Compatible holder: 99616-14 series ●Counterbore dimensions: - ●Insert for 90° ●NC2071: Suitable for a wide range of workpieces ●NC9076: Aluminum, copper, brass, etc. ●H-NC40: Stainless steel, titanium, etc. ●H-NC9076: Aluminum, copper, brass, etc. ●NC40: General-purpose type for steel, low-alloy steel, cast iron, etc. ●NC-10: Stainless steel, etc. Material/Finish: ●Carbide (R35)
