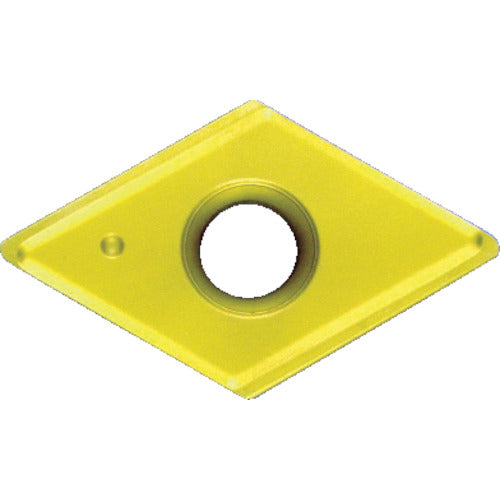

Nine9 NC Spot Drill 90° Insert Length 8mm N9MT080204CT-NC40 5 pieces

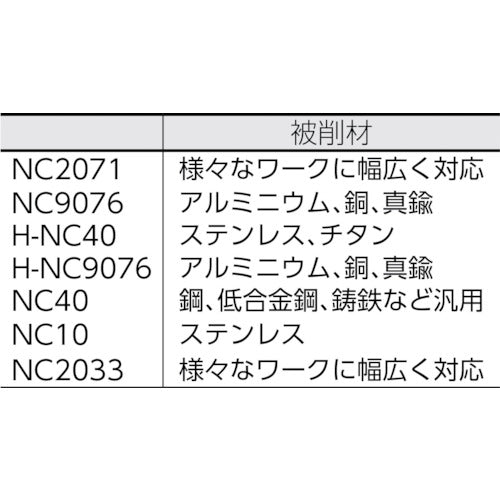

Catalog number: N9MT080204CT-NC40 Features: ● Insert for NC spot drill holders. ● Extremely long life due to special insert design. ● High speed possible due to original insert design and coating. Applications: ● For chamfering, facing, V-groove processing, and engraving on CNC lathes, CNC combined lathes, and machining centers. Specifications: ●Coating: TiN ●Number of corners: 4 ●Compatible holder: 99616-10 ●Tip angle (°): 90 ●Carbide material: K20F ●Thickness (mm): 2.38 ●Maximum machining diameter (mm): 10 ●Length (mm): 8 ●Nose R (mm): 0.4 ●Counterbore dimensions: - ●Insert for 90° ●NC2071: Suitable for a wide range of workpieces ●NC9076: Aluminum, copper, brass, etc. ●H-NC40: Stainless steel, titanium, etc. ●H-NC9076: Aluminum, copper, brass, etc. ●NC40: General-purpose type for steel, low-alloy steel, cast iron, etc. ●NC-10: Stainless steel, etc. Material/Finish: ●Carbide (K20F)
