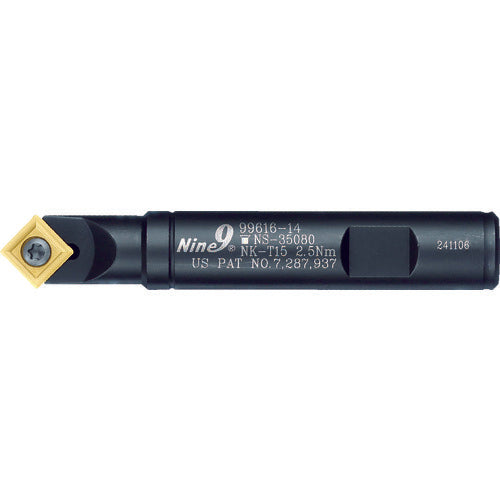

Nine9 NC Spot Drill 90° Holder 99616-14 1 piece

Catalog number: 99616-14 Features: ●One tip can be used for edge marking, chamfering, V-grooving, and engraving. ●High-speed machining is possible with the unique tip design and coating. ●The tip design has a special shape, resulting in a long life. Applications: ●For chamfering, edge marking, V-grooving, and engraving on CNC lathes, CNC combined lathes, and machining centers. Specifications: ●Total length (mm): 100 ●Shank diameter (mm): 16 ●Maximum machining diameter (mm): 14 ●Tip angle (°): 90 ●Tip angle 90° ●Single blade ●Replaceable insert holder Note: ●Tip sold separately.
