Nine9 W Spot Center 145°90° Insert N9MT0802M05C-NC2033 5 pcs

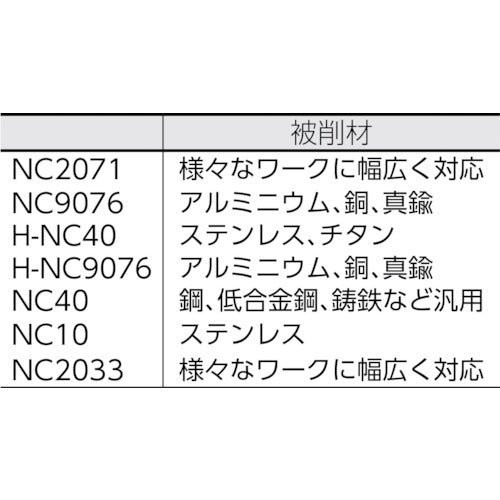

Catalog number: N9MT0802M05C-NC2033 Features: ● Insert for NC spot drill holder. ● Grinding and chamfering are integrated into one process. ● Tip angle of 145° prevents chipping of the drill shoulder. Applications: ● Grinding for tapping pilot holes on CNC lathes, CNC combined lathes, and machining centers. ● Grinding only on the 145° part. ● Chamfering, V-groove processing. Specifications: ●Coating: TiAIN ●Drill size: M5 x 0.8 ●Number of corners: 2 ●Thickness (mm): 2.38 ●Carbide material: K20F ●Maximum machining diameter (mm): 8 ●Nose R (mm): 0.8 ●Compatible holder: 99616-10 ●Length (mm): 8 ●Tip angle (°): 145+90 ●145° chamfering + 90° chamfering insert ●NC2033: Suitable for various workpieces Material/Finish: ●Carbide (K20F)
