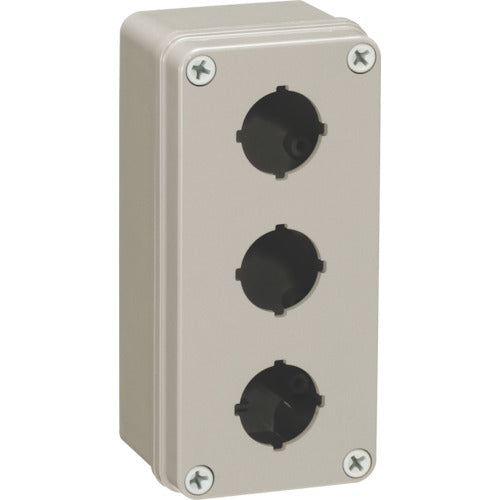

Nito PCS plastic box width 80 depth 65 height 170 PCS-3H30 1 unit

Catalog number: PCS-3H30 Features: ●High IP and oil-resistant resin box for push buttons. ●High strength: Impact resistance meets IK07 of IEC62262. ●Flame retardancy: 5VA (UL94), the highest level in flammability tests. ●RoHS compliant. Specifications: ●Color: Light beige (5Y7/1) ●Width (mm): 80 ●Depth (mm): 65 ●Height (mm): 170 ●Effective depth (mm): 57 ●Cover hole dimensions: φ30×3 ●Body (bottom) hole dimensions: φ22×1 ●Protection rating: IP66/67F (excluding drilled parts) ●For indoor use ●Cabinet plate thickness: Cover 3.0mm, Body 3.0mm ●Door type: Screw-fastened (resin) Material/Finish: ●Polycarbonate (PC) + PBT resin
