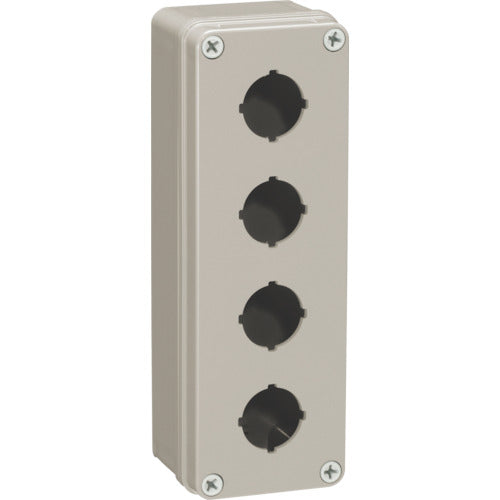

Nito PCS plastic box width 80 depth 65 height 230 PCS-4H30 1 piece

Nito PCS plastic box width 80 depth 65 height 230 PCS-4H30 1 piece

JAN： 　
Electrical wiring parts Electronics Nito Electrical Equipment Switchboard Cabinet Switchboards and enclosures
¥4,224
¥4,224
Sale Sold out
Shipping calculated at checkout.
Catalog number: PCS-4H30 Features: ●High IP and oil-resistant resin box for push buttons. ●High strength: Impact resistance meets IK07 of IEC62262. ●Flame retardancy: The highest grade in flammability tests is 5VA (UL94). ●RoHS compliant. Specifications: ●Color: Light beige (5Y7/1) ●Width (mm): 80 ●Depth (mm): 65 ●Height (mm): 230 ●Effective depth (mm): 57 ●Cover hole dimensions: φ30 x 4 ●Body (bottom) hole dimensions: φ22 x 1 ●Protection rating: IP66/67F (excluding drilled parts) ●For indoor use ●Cabinet plate thickness (mm): Cover 3.0mm, Body 3.0 ●Door type: Screw-fastened (resin) Material/Finish: ●Polycarbonate (PC) + PBT resin
