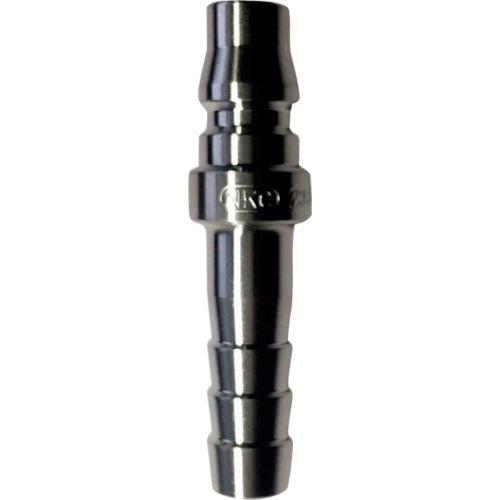

NKC Coupling NL Type Coupling Plug 1/4 Hose Nipple NL-22PH 1 pc

Catalog number: NL-22PH Features: *The automatic open/close valve built into the socket opens and closes according to the insertion and removal of the plug, so there is no need to operate the main valve each time the plug is inserted or removed. *Both sockets and plugs are available for male thread connection, female thread connection, and hose connection, allowing for free combinations. *The mating parts of NL21 to NL24 have the same dimensions and are compatible with each other. *NL44 to NL48 are also similarly compatible. Applications: ● Pneumatic tools, various air piping, pneumatic equipment, drainage pipes, etc. Specifications: ● Pressure resistance (MPa): 2.0 ● Fluid used: Air ● Operating temperature range (℃): -20 to +80 ● Maximum operating pressure (MPa): 1.5 ● Mating hose size (inches): 1/4 ● Compatible couplers: NL20 series, YNL type ● Width (mm): 57 ● Depth (mm): φ16 ● Hexagonal side length (mm): Hexagonal side length (mm) Material/Finish: ● Body: Steel (nickel-chrome plated) Caution: ● Use below the maximum specified pressure.
