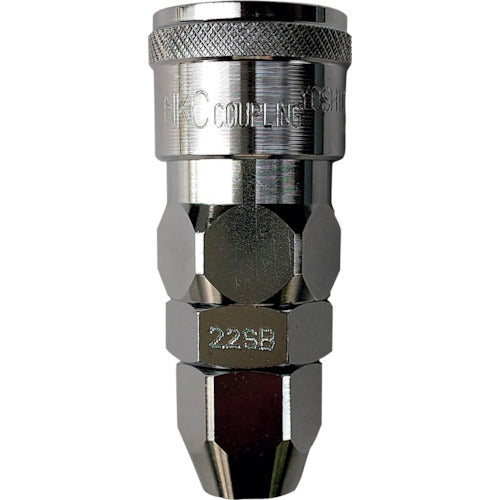

NKC Coupling NL Type Nut Coupling Socket 8.5 x 12.5 Urethane Hose NL-23SB 1 pc

Catalog number: NL-23SB Features: *The automatic open/close valve built into the socket opens and closes according to the insertion and removal of the plug, so there is no need to operate the main valve each time you insert or remove the plug. *Both sockets and plugs are available for male thread connection, female thread connection, and hose connection, allowing for free combinations. *The mating parts of NL21 to NL24 have the same dimensions and are compatible with each other. *NL44 to NL48 are also similarly compatible. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (mm): 8.5 x 12.5 ● Fluid used: Air ● Operating temperature range (℃): -20 to +80 ● Maximum operating pressure (MPa): 1.5 ● Compatible couplers: NL20 series, YNL type ● Hexagonal side length (mm) H1: 19 ● Hexagonal side length (mm) H2: 19 ● Width (mm): 61.5 ● Depth (mm): φ25 ● Hexagonal side length (mm): Hexagonal side length (mm) Material/Finish: ● Body: Steel (nickel-chrome plated) Caution: ● Use below the maximum specified pressure.
