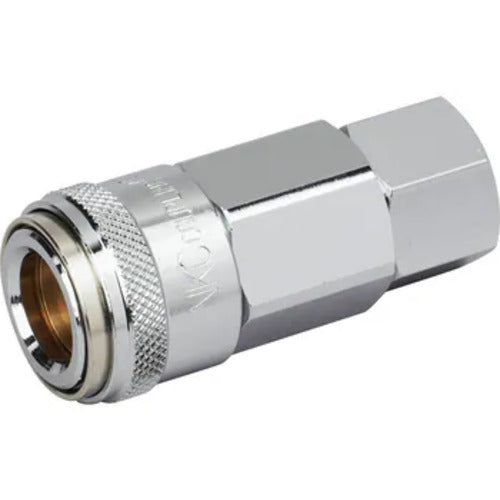

NKC Coupling YNL Type One-Touch Coupling Socket Rc1/4 Female Thread YNL-22SF 1 pc

Catalog number: YNL-22SF Features: ● As with the NL series, the automatic opening and closing valve built into the socket opens and closes according to the insertion and removal of the plug, so there is no need to operate the main valve each time the plug is inserted or removed. ● Simply insert the plug into the socket with one touch for easy and secure connection. ● The socket uses the YNL one-touch type, and the plug uses the standard NL series. ● The socket body is made of steel only and cannot be used with water. ● Both the socket and plug are available in male thread connection, female thread connection, hose connection, and urethane hose connection types, allowing for free combination. ● Only air is applicable fluid. Specifications: ●Pressure resistance (MPa): 2.0 ●Operating fluid: Air ●Operating temperature range (℃): -20 to +80 ●Maximum operating pressure (MPa): 1.5 ●Mating mounting size: R1/4 male thread ●Compatible couplers: NL20 series, YNL type ●Hexagonal side (mm) H1: 19 ●Width (mm): 57 ●Depth (mm): φ25 ●Hexagonal side (mm): Hexagonal side (mm) Material/Finish: ●Body: Steel (nickel-chrome plated) Caution: ●Use below the maximum specified pressure.
