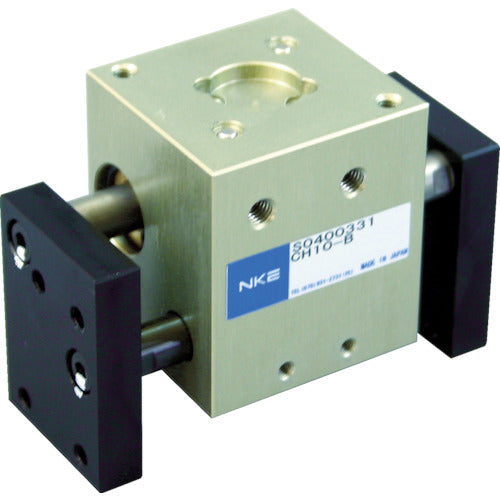

NKE Air Chuck Parallel Square Type CH10X-B CH10X-B 1 unit

Catalog number: CH10X-B Features: ●A compact parallel chuck with a large opening and closing stroke. Specifications: ●Grip force (N): 56.0 (at air pressure 0.5 MPa) ●Opening allowance (mm): 30 ●Maximum jaw length (from tip) (cm): 5 ●Maximum jaw mass (one side) (g): 180 ●Width (mm): 102-72 ●Depth (mm): 46 ●Height (mm): 70 ●Operation method: Double acting ●Operating pressure (MPa): 0.3-0.7 ●Repeatability: Initial value: ±0.1 2 million times: ±0.2 ●Ambient temperature (℃): 5-60 Material/Finish: ●Body: Aluminum alloy
