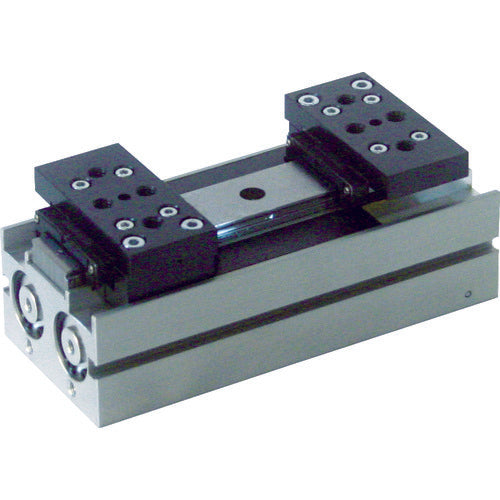

NKE Air Chuck Parallel Square Type CHP302A-30 CHP302A-30 1 unit

Catalog number: CHP302A-30 Features: ●By using a linear guide, it is possible to maintain precision for a long period of time. ●The structure is simple and the overall height is low, so even if a module is configured, the overhang can be reduced. ●Switches that can easily detect the open, closed, intermediate and gripping positions of the fingers can be attached to the grooves of the body. ●An intermediate stop type that stops the fingers midway through the opening range to avoid interference with adjacent workpieces can also be manufactured. ●Dust seals are built in to prevent the intrusion of fine powder dust, further improving environmental resistance. Specifications: ●Grip force (N): 99 (at air pressure of 0.5 MPa) ●Opening clearance (mm): 30 ●Maximum claw length (from tip) (cm): 6.0 ●Maximum claw mass (one side) (g): 300 ●Width (mm): 108 ●Depth (mm): 45 ●Height (mm): 42 ●Operation method: Double-acting ●Repeat accuracy (mm): Initial value ±0.07, 2 million times ±0.1 ●Operating pressure: 0.2 to 0.7 MPa ●Ambient temperature (℃): 5 to 60 Material/Finish: ●Body: Aluminum alloy Note: ●Use NSH-24V or NSV-24V position detection switch.
