NKKスイッチズ(株)
NKK Switches Toggle Switch Screw Terminal 2 Pole ON-OFF S-331T 1 pc
NKK Switches Toggle Switch Screw Terminal 2 Pole ON-OFF S-331T 1 pc
Regular price
¥1,430
Regular price
Sale price
¥1,430
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

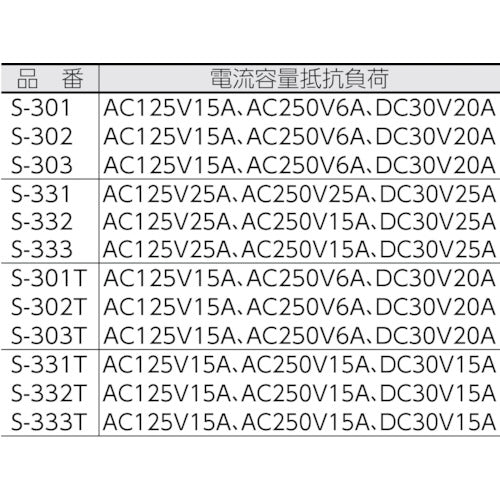

Catalog number: S-331T Features: ●Special terminal fastening method. ●Uses special silver alloy contacts. Specifications: ●Number of circuits: 2-pole single throw (4P) ●Function operation: ON-OFF ●Current capacity resistive load: AC125V15A, AC250V15A, DC30V15A ●Current capacity inductive load AC125V (power factor = 0.6): 10A ●Bushing size: M12 ●Mounting hole dimensions (mm): φ12.5 ●Operating temperature range: -10 to +70°C ●Mounting hole dimensions: φ12.5mm ●Motor load: AC125V200W ●Terminal shape: Screw Materials/Finish: ●Lever: Copper alloy ●Case: Melamine phenolic resin
View full details
