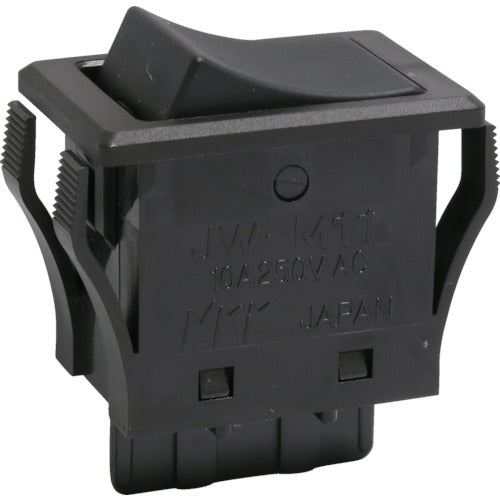

NKK Switches Rocker Switch JW-M Series Single Pole ON-OFF JW-M11RKK 1 pc

Catalog number: JW-M11RKK Features: ● Small rocker switch. ● Inrush characteristics: 78A. Applications: ● Power supplies for office equipment and lighting equipment. Specifications: ● Number of circuits: Single pole single throw (2P) ● Functional operation: ON-OFF ● Mounting panel thickness (mm): 1-4 ● Mounting hole dimensions (mm): 24 x 15.4 ● Contact resistance: 10mΩ or less (at DC5V 1A) ● Insulation resistance: DC500V, 1000MΩ or more ● Rating: AC125V-10A, AC250V-10A ● Mounting hole dimensions: 24 x 15.4mm ● Mounting panel thickness: 1-4mm ● Terminal shape: Solder terminal (can also be used as tab terminal #110) Material/Finish: ● Button: Polyphenylene ether resin ● Housing: Polyamide resin
