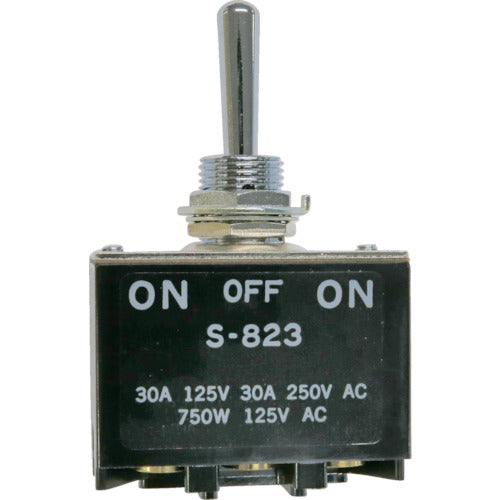

NKK Switches High Current Toggle Switch Screw Terminal 2 Pole ON-OFF-ON S-823 1 pc

Catalog number: S-823 Features: ● Toggle switch for large currents. Applications: ● High-capacity power supply equipment, etc. Specifications: ● Number of circuits: 2-pole double-throw (6P) ● Functional operation: ON-OFF-ON ● Mounting hole dimensions (mm): φ12.5 ● Contact resistance: 10mΩ or less (at DC5V 1A) ● Insulation resistance: DC500V, 1000MΩ or more ● Rating: AC125V-30A, AC250V-30A, DC30V-30A, DC125V-1A, (Inductive load: AC125V-30A, AC250V-15A) ● Mounting hole dimensions: φ12.5mm ● Screw terminal Material/Finish: ● Lever: Copper alloy ● Case: Melamine phenolic resin
