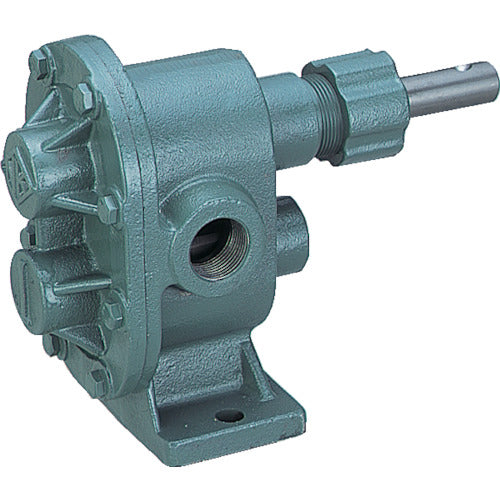

NK Gear Pump, Standard Single Wheel Type, No Motor, KA-03, 1 Unit

Catalog number: KA-03 Features: ● All models use our proprietary involute tooth gear. ● All bore sizes use phosphorus bronze oil-impregnated metal for the bearings, resulting in smooth rotation and excellent durability. ● Pump body only. (Pulley not included) Applications: ● Transfer of oils such as lubricating oils. Specifications: ● Discharge volume (L/min): 13-16 ● Bore size: 3/8 inch (10A) ● Overall width (mm): 75 ● Overall length (mm): 176 ● Overall height (mm): 132 ● Maximum pressure (MPa): 0.3 ● Rotation speed (rpm): 500 ● Normal pressure: 0-0.2MPa ● Viscosity used: 50-500mm2/S ● Operating temperature: 60°C or less Material/Finish: ● Cast iron
