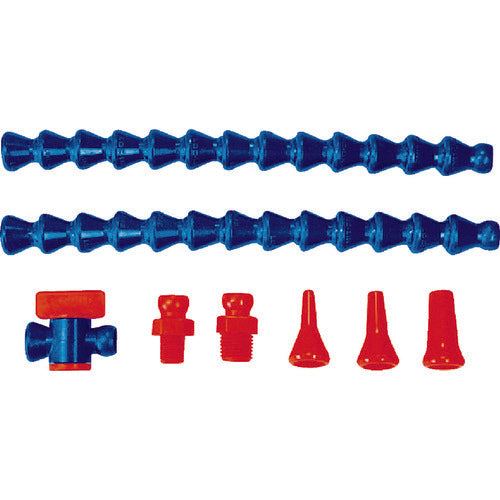

Catalog number: MC1651 Features: ● Can be used as a double type by adding a screw hole for the spray unit. Applications: ● For spraying cutting fluid. Specifications: ● Number of nozzles: 3 ● Nozzle length (mm): 380 ● Cutting fluid intake port: NPT1/4, 1/8 ● Valve: Yes ● Maximum operating fluid pressure (kg/cm2): 3.5 ● Nozzle tip hole diameter: 1/4, 1/8, 1/16 ● Suitable fluids: Water-soluble cutting fluid, oil-based cutting fluid ● Spray unit length (mm): 380 ● Operating fluid pressure: 2-3.4 bar (30-50 psi) ● Maximum operating temperature: 80°C
