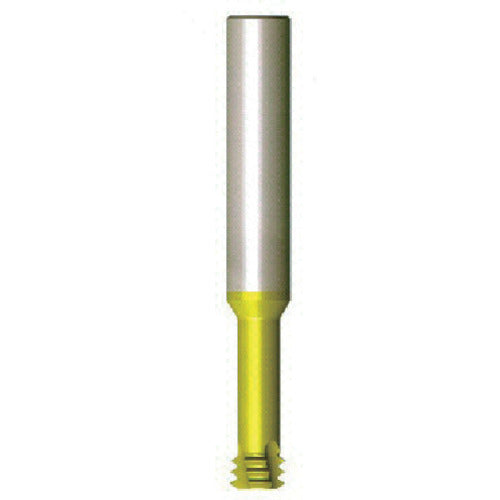

NOGA Hard Cut Mini Mill Thread Nominal Size M10.0 Pitch 1.50 H08078C23 1.5ISO 1 pc

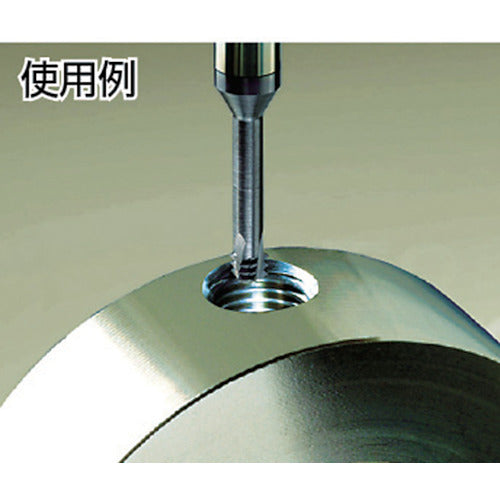

Catalog number: H08078C23 1.5ISO Features: ●Can cut threads on hardened steel and difficult-to-cut materials up to 62HRC. ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) reduces cutting load. ●Can cut effective threads to the corners of blind holes. ●Can cut small diameter threads from M1.4 x 0.3 to M12 x 1.75. Applications: ●Workpiece: Hardened steel and difficult-to-cut materials up to 62HRC. ●For cutting threads on hardened steel, precision machine parts, electrical parts, etc. Specifications: Nominal size: M10.0 Pitch (mm): 1.50 Blade diameter (mm): 7.80 Total length (mm): 64 Number of blades (pieces): 3 Shank diameter (mm): 8 Neck length (mm): 23.0 Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT9) Thread depth: Up to twice the blade diameter Thread: For ISO metric threads For internal diameter Material/Finish: Ultrafine grain carbide Note: The hard cut is the left blade. Use M04 for the CNC code.
