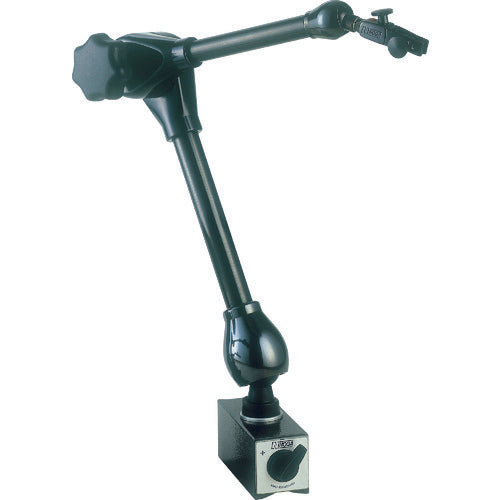

NOGA Big Boy MA61003 1 piece

Catalogue number: MA61003 Features: ●The tip fine adjustment mechanism makes it easy to align the zero point. ●The three joints are firmly locked by tightening the knob in the center. ●An ultra-heavyweight type with an arm length of 580 mm. Applications: ●Holding device for test indicators and dial gauges. Specifications: ●Adhesive force (N): 1300 ●Magnet width (mm): 50 ●Magnet depth (mm): 120 ●Magnet height (mm): 55 ●Arm mounting screw: M10 x P1.25 ●Arm mounting screw: M10 x P1.25 ●Measuring instrument mounting: 6 mm, 8 mm, 3/8 inch holes, with dovetail grooves ●Total arm length: 580 mm ●Arm holding force: 20 kg ●Magnet holding force: 1300 N ●Effective travel range: 694 mm ●Arm: Steel
