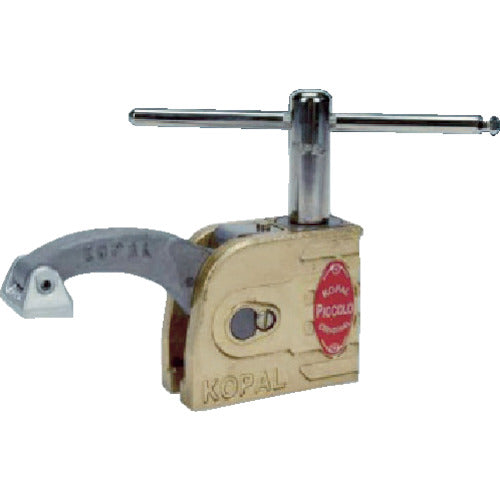

NOGA Piccolo 4000N KM07-025 1 piece

Catalogue number: KM07-025 Features: ●The clamp height can be easily adjusted without using a height adjustment block or adjustment plate, and a constant clamping force is maintained. ●Despite its compact size, it exerts a strong clamping force. Specifications: ●Width (mm): 32 ●Height (mm): 62.5 ●Clamping force (N): 4200 ●Depth (mm): 73 ●Arm length (mm): 100 ●Arm height (mm): -40 to 90 ●Clamping force 4200N Material/Finish: ●Body: Aluminum bronze ●Arm: Steel Set contents/Accessories: ●1 aluminum rotating shoe, ball point hex wrench (8mm), 1 M8 x 30 standard tightening screw
