NOGA Mill Thread Tool Holder SR0009H12 1 piece

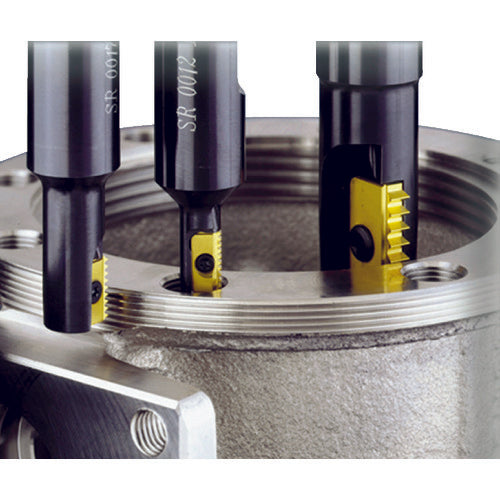

Catalog number: SR0009H12 Features: ●Mill thread is a milling thread cutting tool that utilizes the helical feed function of a machining center. ●Right-handed and left-handed threads can be machined with the same holder and tip. ●A variety of sizes of external and internal diameters can be threaded with one holder and tip. ●Thread machining can be done in one pass. ●ISO, WHIT, BSPT, NPT, and other tips can be used with one holder. Applications: ●Large diameter thread machining with low horsepower machines. ●Small lot thread machining. Specifications: ●Blade diameter (mm): 9.5 ●Total length (mm): 85 ●Shank diameter (mm): 20 ●Tip blade width (mm): 12 ●Neck length (mm): 14 ●Neck diameter (mm): 7.5 Material/Finish: ●Steel Note: ●Tip sold separately.
