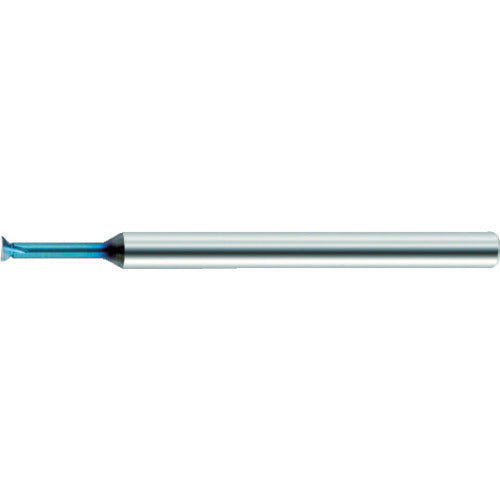

NOGA Back Countersink Mini Chamfer 45° Blade Dovetail Blade Diameter 2.0mm MC0302C6 A45 1 piece

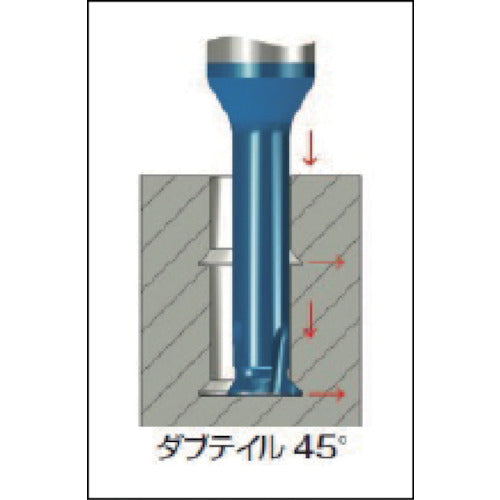

Catalog number: MC0302C6 A45 Features: ● Mini chamfer with only a back chamfering blade. ● Ideal for chamfering the shallow back side of the bottom. Applications: ● Workpiece: carbon steel, stainless steel, cast steel, aluminum, plastic, nickel alloy, titanium alloy, etc. ● Mini chamfer that can remove chamfer burrs by back milling drill holes. Specifications: ● Blade diameter (mm): 2.0 ● Overall length (mm): 39 ● Neck length (mm): 6.0 ● Shank diameter (mm): 3 ● Surface treatment: Titanium aluminum nitride (AlTiN) coating (MT8) ● Chamfering amount (mm): 0.4 ● Tip angle: 45° ● Chamfering angle 45° ● Surface treatment: Titanium aluminum nitride (AlTiN) coating (MT8) Material/Finish: ● MT8: Ultra-fine grain carbide AlTiN coating
