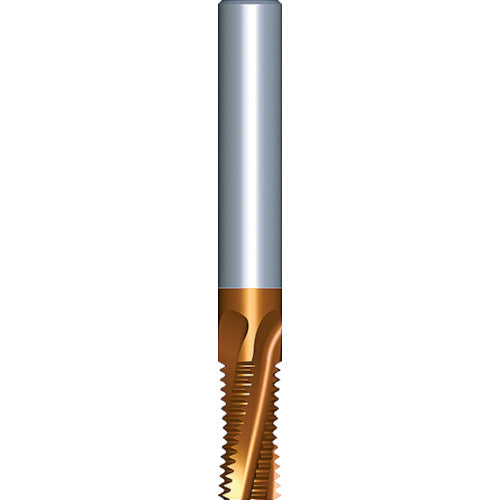

NOGA Solid Carbide Mill Thread ISO Pitch 0.75mm 06045C10 0.75ISO MT-7 1 pc

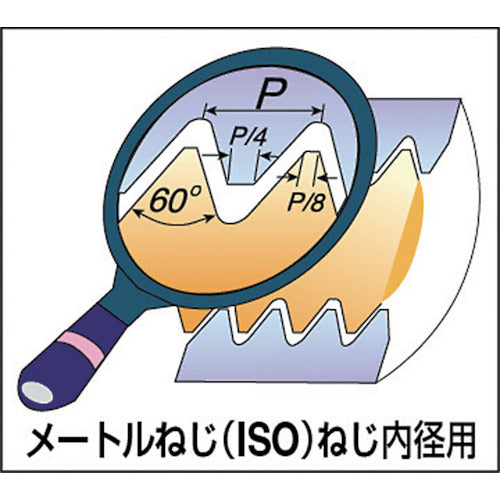

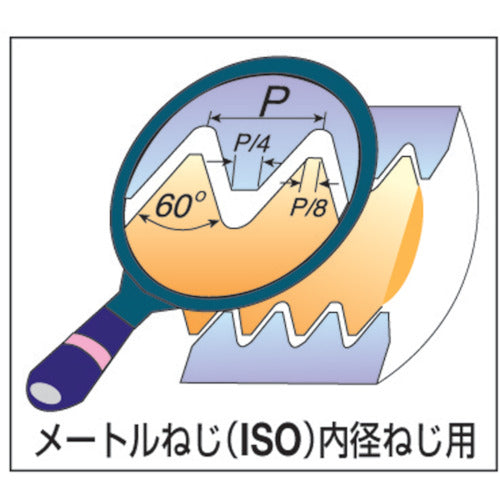

Catalog number: 06045C10 0.75ISO MT-7 Features: ●Thread processing can be done in one pass. ●Effective threads can be cut to the corners of blind holes. ●Threads of different diameters and the same pitch can be processed with one tool, regardless of whether they are right-handed or left-handed. ●The spiral blade produces a clean finish. Applications: ●Cutting materials: carbon steel, alloy steel, stainless steel, cast steel, cast iron. ●Carbide thread cutting tool. Specifications: ●Pitch (mm): 0.75 ●Blade diameter (mm): 4.5 ●Blade length (mm): 10.1 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Surface treatment: Titanium aluminum nitride (TiAlN) multi-layer coating (MT7) ●Thread: For metric thread inner diameter (ISO) Material/Finish: ●Ultra-fine grain carbide
