NOGA Solid Carbide Mill Thread ISO Nominal Size M12 Pitch 1.75mm 0808C28 1.75ISO MT-7 1 pc

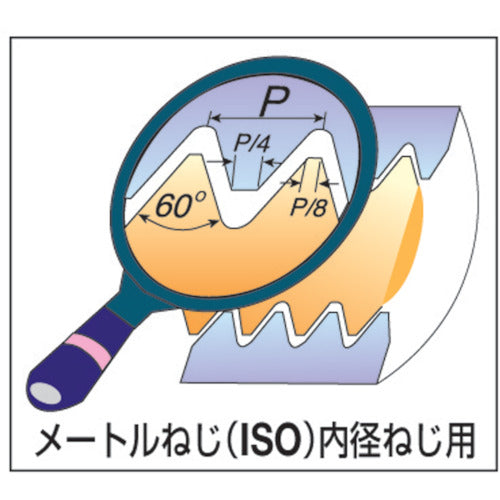

Catalog number: 0808C28 1.75ISO MT-7 Features: ●Thread processing can be done in one pass. ●Effective threads can be cut to the corners of blind holes. ●Threads of different diameters and the same pitch can be processed with one tool, regardless of whether they are right-handed or left-handed. ●The spiral blade produces a clean finish. Applications: ●Cutting materials: carbon steel, alloy steel, stainless steel, cast steel, cast iron. ●Carbide thread cutting tool. Specifications: ●Nominal size: M12 ●Pitch (mm): 1.75 ●Blade diameter (mm): 8.0 ●Blade length (mm): 28.9 ●Total length (mm): 76 ●Number of blades (pieces): 3 ●Shank diameter (mm): 8 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) ●Thread: For metric thread inner diameter (ISO) Material/Finish: ●Ultra-fine grain carbide
