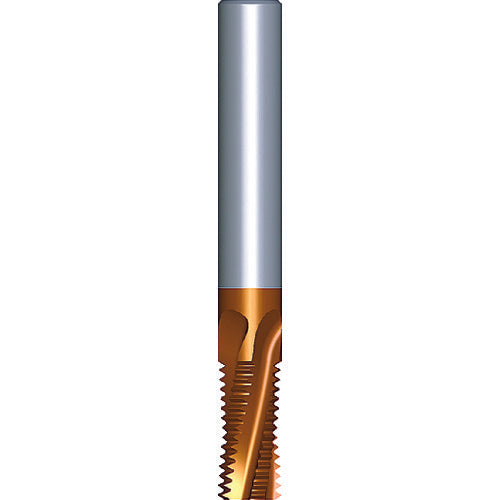

NOGA Solid Carbide Mill Thread ISO Nominal Size M3 Pitch 0.50mm 06022C5 0.5ISO MT-7 1 Piece

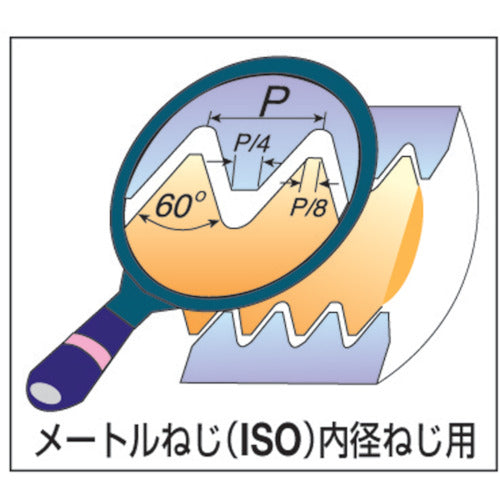

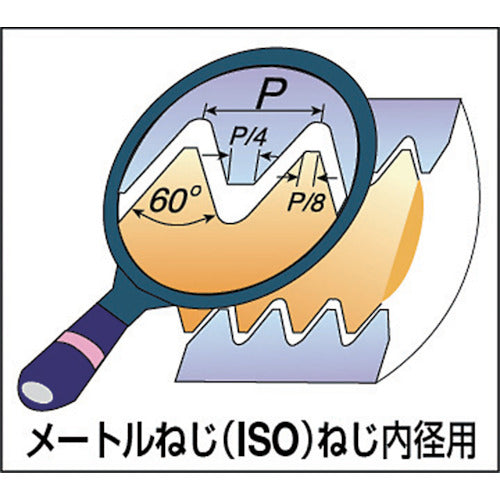

Catalog number: 06022C5 0.5ISO MT-7 Features: ●Thread processing can be done in one pass. ●Effective threads can be cut to the corners of blind holes. ●Threads of different diameters and the same pitch can be processed with one tool, regardless of whether they are right-handed or left-handed. ●The spiral blade produces a clean finish. Applications: ●Cutting materials: carbon steel, alloy steel, stainless steel, cast steel, cast iron. ●Carbide thread cutting tool. Specifications: ●Nominal size: M3 ●Pitch (mm): 0.50 ●Blade diameter (mm): 2.2 ●Blade length (mm): 5.3 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Surface treatment: Titanium aluminum nitride (TiAlN) multi-layer coating (MT7) ●Thread: For metric thread inner diameter (ISO) Material/Finish: ●Ultra-fine grain carbide
