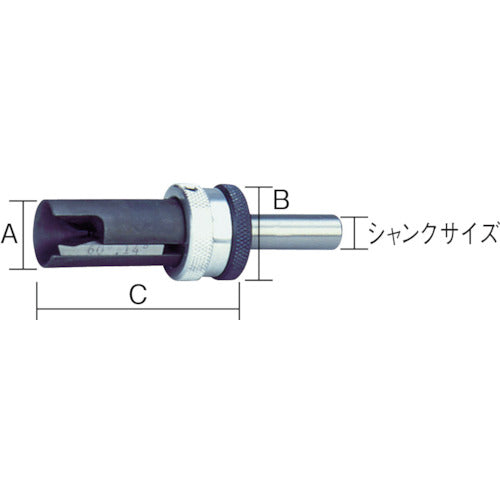

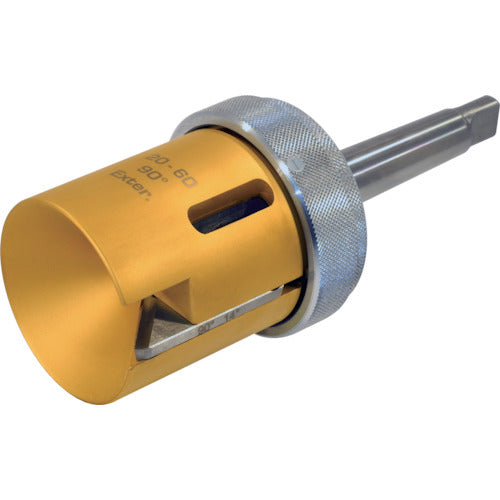

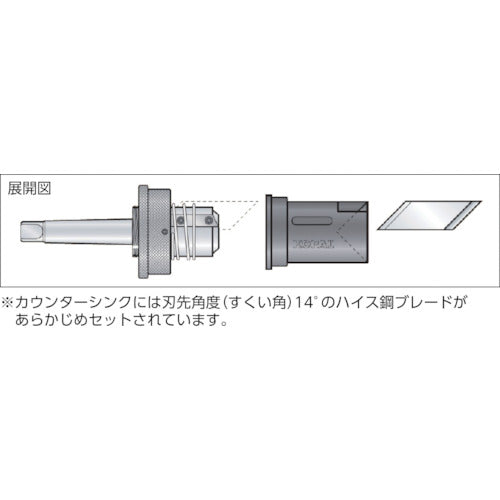

Catalog number: KP02-135 Features: ●KOPAL chamfering unit is made up of a main body, blade and guide. ●The conical guide, whose height can be adjusted by a spring, serves to center the workpiece. ●The high-speed steel blade is locked with a nut, and the blade protrusion can be set. Applications: ●External chamfering. ●Chamfering the ends of round bars, square bars, etc. Specifications: ●Chamfering diameter (mm): 21-57 ●Chamfering angle (°): 90 ●Shank size: MT2 ●Compatible blade: KP02-310 ●Model: 20-60 ●A (mm): 60 ●B (mm): 70 ●C (mm): 85 ●Cutter tip angle (°): 90 ●Chamfering is possible in the range of 21-57 mm. ●MT2 ●For drill presses and electric drills Material/Finish: ●Blade (edge): High-speed steel
