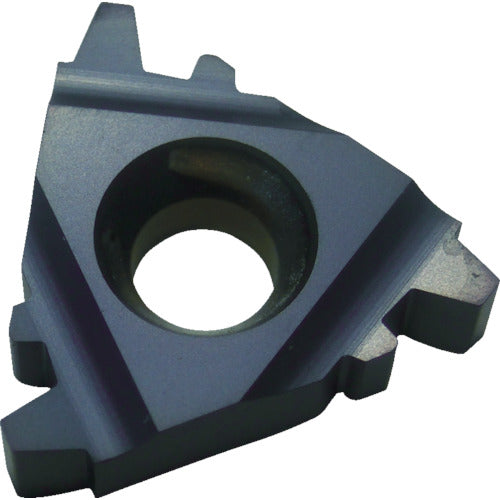

NOGA Carmex thread cutting tip TRAPEZ/for trapezoidal threads Tip size 22 x P4.0 x 30° 22IR4TRBMA 10 pieces

Catalog number: 22IR4TRBMA Features: ●BMA: Ultra-fine grain carbide with TiAlN coating. A versatile material that can handle difficult-to-cut materials at medium to high speeds. ●Excellent effect on carbon steel. Applications: ●Thread cutting insert ●Outer diameter TR (trapezoidal 30° thread) P1.5 Right-hand thread Specifications: ●Thread angle: 30° ●Insert size (mm): 22 ●Inscribed circle size (inch): 1/2 ●Pitch (mm): 4.0 ●Surface treatment: BMA (TiAlN coated) ●Thread type: TRAPEZ/trapezoidal thread ●Insert size: L 16mm IC3/8 ●IR type: For right-handed internal diameter Material/Finish: ●Ultra-fine grain carbide
