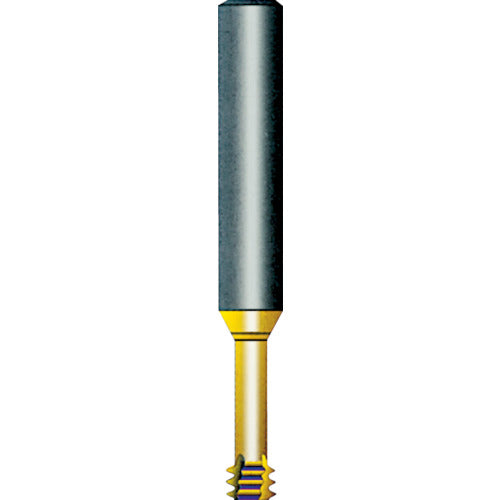

NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 10 x M12.0 x 1.75 x Neck Length 26.0 M1009C26 1.75ISO 1 Piece

Catalog number: M1009C26 1.75ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) reduces cutting load. ●Effective threads can be cut to the corners of blind holes. ●Thread cutting can be performed on difficult-to-cut materials and high-hardness materials up to HRC45. Applications: ●Workpiece: difficult-to-cut materials and high-hardness materials up to HRC45. ●For thread cutting precision machine parts and electrical parts. Specifications: ●Nominal size: M12.0 ●Pitch (mm): 1.75 ●Blade diameter (mm): 9.00 ●Total length (mm): 73 ●Number of blades (pieces): 3 ●Shank diameter (mm): 10 ●Neck length (mm): 26.0 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) Material/Finish: ●Ultra-fine grain carbide
