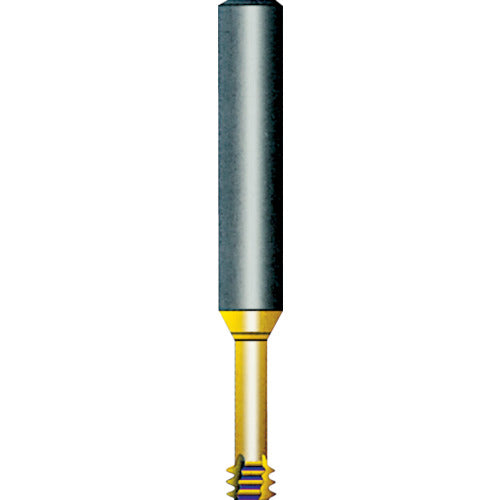

NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 3 x M1.4 x 0.30 x Neck Length 4.0 M03011C4 0.3ISO 1 pc

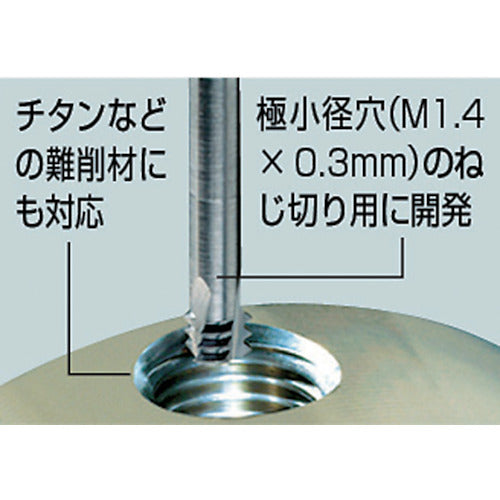

Catalog number: M03011C4 0.3ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) does not put a burden on cutting. ●Can cut effective threads to the corners of blind holes. ●Can cut threads on difficult-to-cut materials and high-hardness materials up to HRC45. Applications: ●Cutting materials: difficult-to-cut materials and high-hardness materials up to HRC45. ●For cutting threads on precision machine parts and electrical parts. Specifications: ●Nominal size: M1.4 ●Pitch (mm): 0.30 ●Blade diameter (mm): 1.05 ●Total length (mm): 39 ●Number of blades (pieces): 3 ●Shank diameter (mm): 3 ●Neck length (mm): 4.0 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) ●Thread depth: Up to 3 times the blade diameter ●Thread: For ISO metric threads Material/Finish: ●Ultra-fine grain carbide
