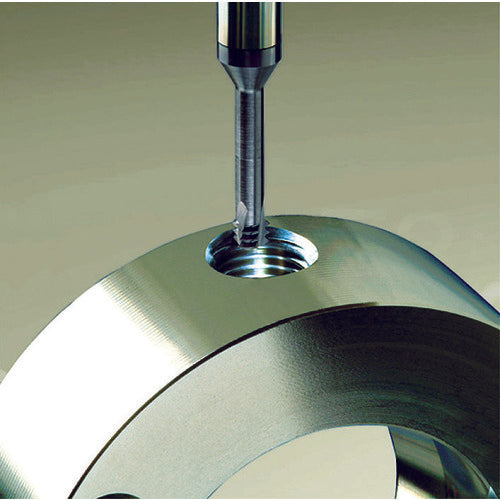

NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 6 x M2.0 x 0.40 x Neck Length 4.5 M06016C40.4ISO 1 pc

Catalog number: M06016C40.4ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) reduces cutting load. ●Effective threads can be cut to the corners of blind holes. ●Thread cutting can be performed on difficult-to-cut materials and high-hardness materials up to HRC45. Applications: ●Workpiece: difficult-to-cut materials and high-hardness materials up to HRC45. ●For thread cutting precision machine parts and electrical parts. Specifications: ●Nominal size: M2.0 ●Pitch (mm): 0.40 ●Blade diameter (mm): 1.53 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Neck length (mm): 4.5 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) Material/Finish: ●Ultra-fine grain carbide
