NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 6 x M3.0 x 0.50 x Neck Length 9.5 M06024C9 0.5ISO 1 pc

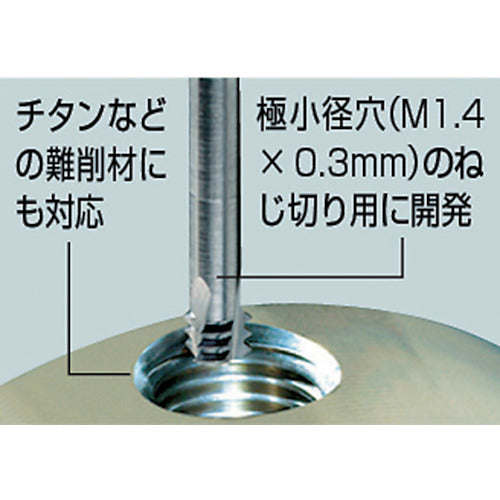

Catalog number: M06024C9 0.5ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) does not put a burden on cutting. ●Can cut effective threads to the corners of blind holes. ●Can cut threads on difficult-to-cut materials and high-hardness materials up to HRC45. Applications: ●Cutting materials: difficult-to-cut materials and high-hardness materials up to HRC45. ●For cutting threads on precision machine parts and electrical parts. Specifications: ●Nominal size: M3.0 ●Pitch (mm): 0.50 ●Blade diameter (mm): 2.37 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Neck length (mm): 9.5 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) ●Thread depth: Up to 3 times the blade diameter ●Thread: For ISO metric threads Material/Finish: ●Ultra-fine grain carbide
