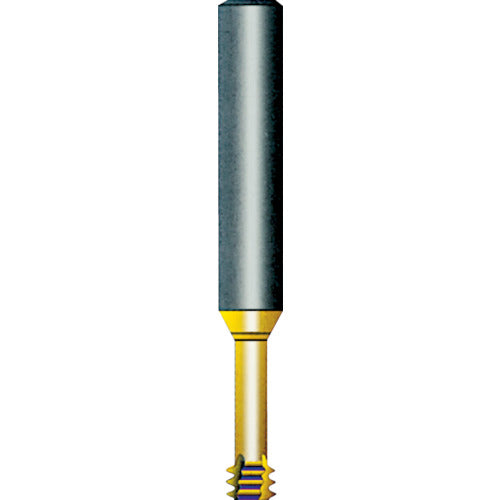

NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 6 x M3.5 x 0.60 x Neck Length 7.5 M06028C7 0.6ISO 1 pc

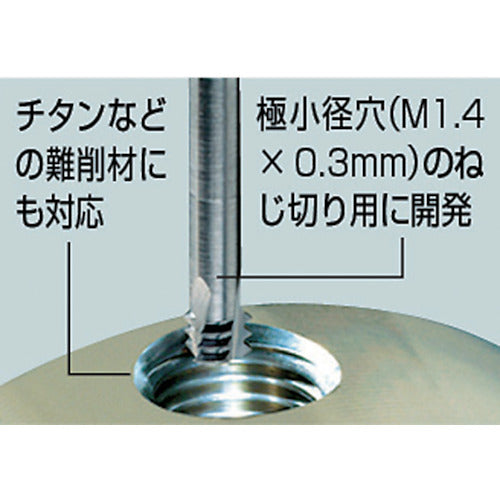

Catalog number: M06028C7 0.6ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) reduces cutting load. ●Effective threads can be cut to the corners of blind holes. ●Thread cutting can be performed on difficult-to-cut materials and high-hardness materials up to HRC45. Applications: ●Workpiece: difficult-to-cut materials and high-hardness materials up to HRC45. ●For thread cutting precision machine parts and electrical parts. Specifications: ●Nominal size: M3.5 ●Pitch (mm): 0.60 ●Blade diameter (mm): 2.75 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Neck length (mm): 7.5 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) Material/Finish: ●Ultra-fine grain carbide
