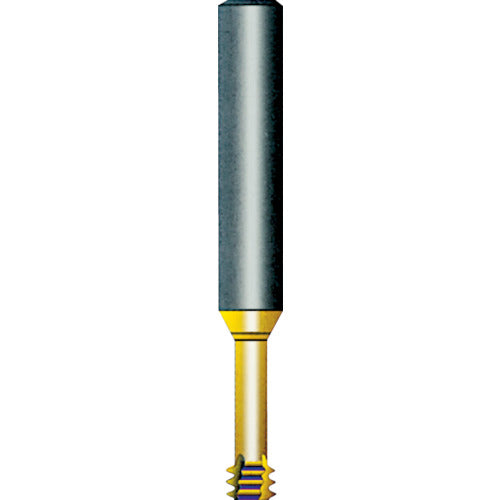

NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 6 x M4.0 x 0.70 x Neck Length 9.0 M06031C9 0.7ISO 1 pc

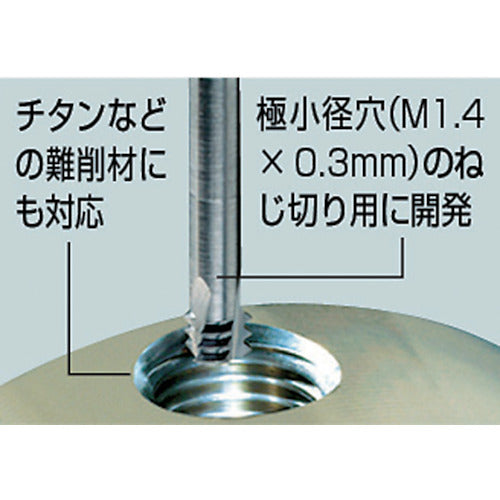

Catalog number: M06031C9 0.7ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) reduces cutting load. ●Effective threads can be cut to the corners of blind holes. ●Thread cutting can be performed on difficult-to-cut materials and high-hardness materials up to HRC45. Applications: ●Workpiece: difficult-to-cut materials and high-hardness materials up to HRC45. ●For thread cutting precision machine parts and electrical parts. Specifications: ●Nominal size: M4.0 ●Pitch (mm): 0.70 ●Blade diameter (mm): 3.10 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Neck length (mm): 9.0 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) Material/Finish: ●Ultra-fine grain carbide
