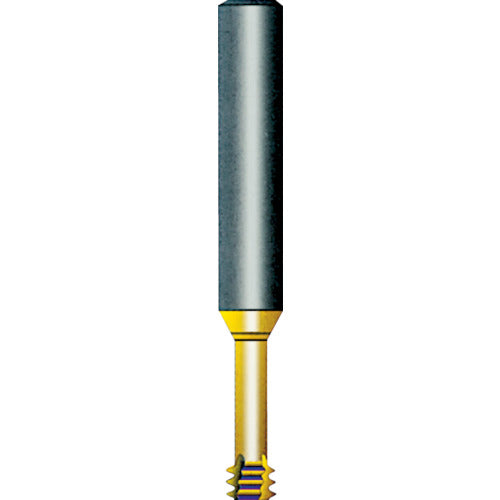

NOGA Carmex Solid Carbide Mini Mill Thread Shank Diameter 6 x M5.0 x 0.80 x Neck Length 16.0 M06038C16 0.8ISO 1 pc

Catalog number: M06038C16 0.8ISO Features: ●High-speed cutting reduces machining time. ●Short blade length (3 teeth) does not put a burden on cutting. ●Effective threads can be cut to the corners of blind holes. ●Thread cutting can be performed on difficult-to-cut materials and high-hardness materials up to about HRC45. Applications: ●Workpiece: difficult-to-cut materials and high-hardness materials up to about HRC45. ●For thread cutting of precision machine parts and electrical parts. Specifications: ●Nominal size: M5.0 ●Pitch (mm): 0.80 ●Blade diameter (mm): 3.80 ●Total length (mm): 58 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Neck length (mm): 16.0 ●Surface treatment: Aluminum titanium nitride (TiAlN) multi-layer coating (MT7) ●Thread depth: Up to 3 times the blade diameter ●Thread: For ISO metric threads Material/Finish: ●Ultra-fine grain carbide
