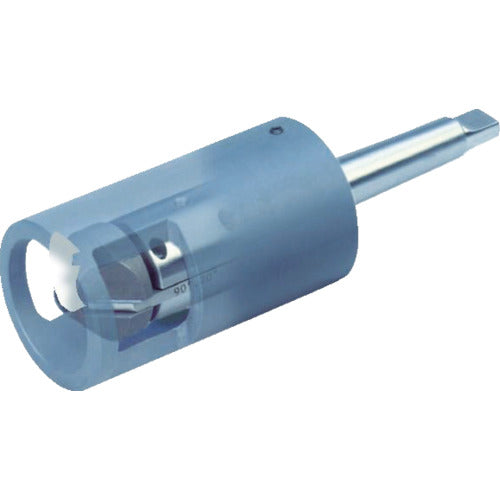

NOGA K4 Internal and External Countersink 90° MT-2 Shank KP04-110 1 Piece

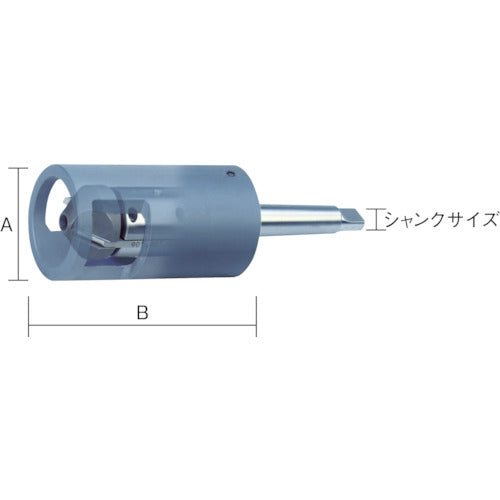

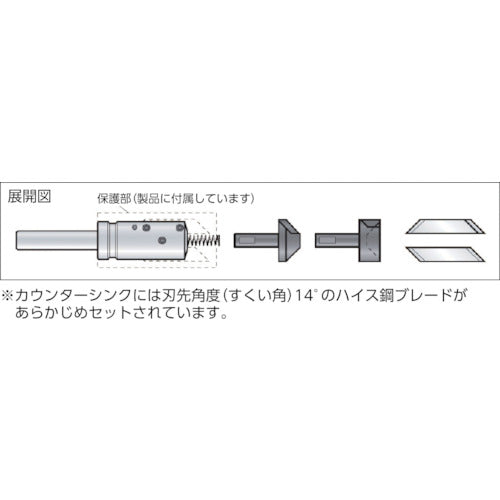

Catalog number: KP04-110 Features: ●The inside and outside of the pipe can be chamfered at the same time, and each can be set separately. ●The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide. ●The conical guide, whose height can be adjusted by a spring, serves to center the workpiece. ●The high-speed steel blade is locked with a nut, and the blade protrusion can be set. Applications: ●Chamfering of the inside and outside diameters. ●Simultaneous chamfering of the inside and outside of the pipe. Specifications: ●Chamfering diameter (mm) inner diameter: 29-40 ●Chamfering diameter (mm) outer diameter: 34-45 ●Chamfering angle (°): 90 ●Shank size: MT2 ●Compatible blade: KP04-320/330 ●Model: K4 ●A (mm): 67 ●B (mm): 112 ●Chamfering is possible within the range of inner diameter 12-24 and outer diameter 14-24 mm. Material/Finish: ●Blade (edge): High-speed steel
