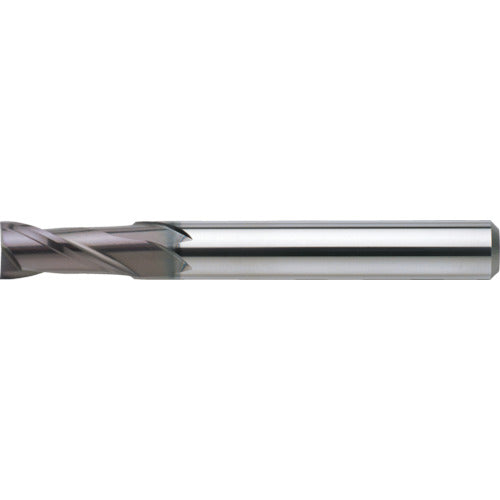

NS Carbide Square End Mill Infinite Lead 30 End Mill 2-Blade MX230 Φ0.1 MX230 0.1 1 Piece

Catalog number: MX230 0.1 Features: ● Adopts a unique infinite coating with wear resistance and lubricity. ● Highly efficient machining is possible with a short blade length and a design with increased rigidity of a 25° twist angle. ● Suppresses vibration during groove machining and minimizes workpiece bending. ● Standard type that can be used for all purposes regardless of groove or side. Applications: ● Workpiece material: carbon steel, alloy steel, stainless steel, tempered steel, hardened steel (up to 55HRC), copper. ● Cutting of molds and parts. Specifications: ● Blade diameter (mm): 0.1 ● Blade length (mm): 0.2 ● Shank diameter (mm): 4 ● Total length (mm): 45 ● Surface treatment: infinite coating ● Twist angle (°): 30 ● Made in a factory certified to ISO14001 Material/Finish: ● Ultra-fine particle cemented carbide
