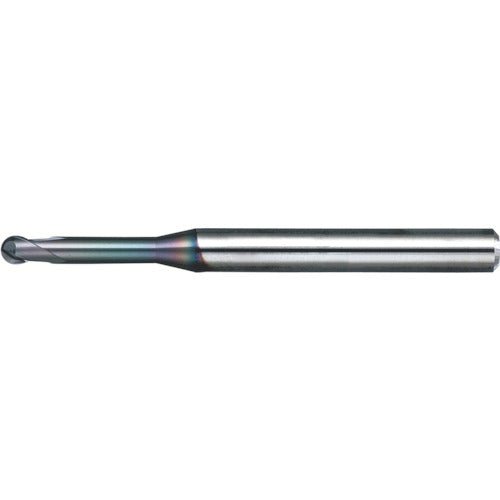

NS High hardness 2-blade long neck ball end mill MRBH230 MRBH230 R2X45D6 1 piece

Catalog number: MRBH230 R2X45D6 Features: ●Excellent chipping resistance due to the high hardness MUGEN Coating Premium and unique new shape, and improved finish surface by suppressing chattering. ●Can handle high hardness steel up to 65HRC. Applications: ●Workpiece: Tempered steel, high-grade steel, titanium alloy. ●Cutting of molds and parts. Specifications: ●Ball radius (mm): 2 ●Neck length (mm): 45 ●Blade length (mm): 3 ●Total length (mm): 90 ●Shank diameter (mm): 6 ●Surface treatment: MUGEN Coating Premium ●Total length (L): 90 ●Blade length (L): 3 ●Ball radius (R): 2 ●Shank diameter (d): 6 ●Twist angle 30° Material/Finish: ●Ultra-fine particle carbide alloy
