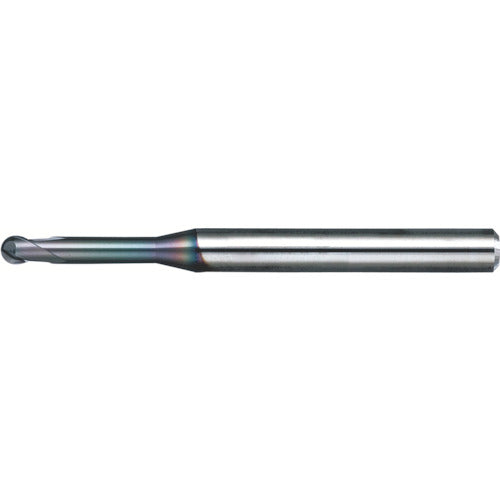

NS High Hardness 2-Blade Long Neck Ball End Mill MRBH230 MRBH230 R3X10 1 piece

Catalog number: MRBH230 R3X10 Features: ●Excellent chipping resistance due to the high hardness MUGEN Coating Premium and unique new shape, and improves the finished surface by suppressing vibration. ●Can handle high hardness steel up to 65HRC. Applications: ●Workpiece: Tempered steel, high-grade steel, titanium alloy. ●Cutting of molds and parts. Specifications: ●Ball radius (mm): 3 ●Neck length (mm): 10 ●Blade length (mm): 6 ●Total length (mm): 70 ●Shank diameter (mm): 6 ●Surface treatment: MUGEN Coating Premium ●Total length (L): 70 ●Blade length (L): 6 ●Ball radius (R): 3 ●Shank diameter (d): 6 ●Twist angle 30° Material/Finish: ●Ultra-fine particle carbide alloy
