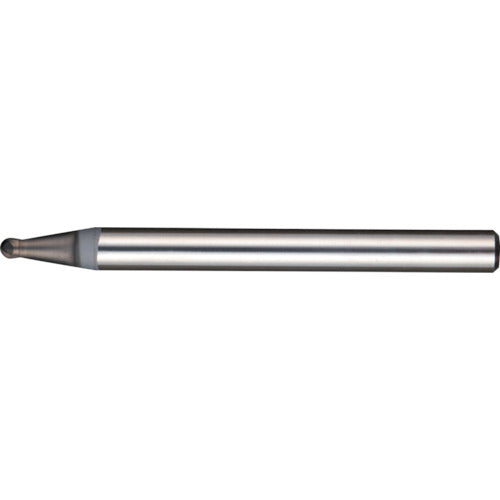

NS 4-blade long radius end mill MHRH430R φ5XR0.2X15 MHRH430R 5XR0.2X15 1 piece

Catalog number: MHRH430R 5XR0.2X15 Features: ●This is a 4-blade long-neck radius end mill with infinite coating, ideal for direct engraving of high-hardness materials. Applications: ●Workpiece: tempered steel, hardened steel, titanium alloy. ●Cutting of molds and parts. Specifications: ●Blade diameter (mm): 5 ●Corner radius (mm): 0.2 ●Blade length (mm): 4 ●Total length (mm): 70 ●Shank diameter (mm): 6 ●Number of blades (pieces): 4 ●Surface treatment: infinite coating premium ●Effective length (mm): 2 ●Number of blades: 4 ●Bottom blade shape: Radius ●Twist angle: 30 ●Twist angle 30° Material/Finish: ●Ultra-fine particle carbide alloy
