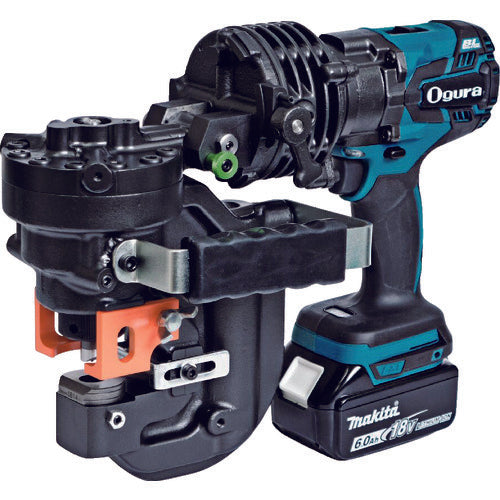

Ogura Cordless Hydraulic Puncher (Double-acting) N Series HPC-NF209WBL 1 unit

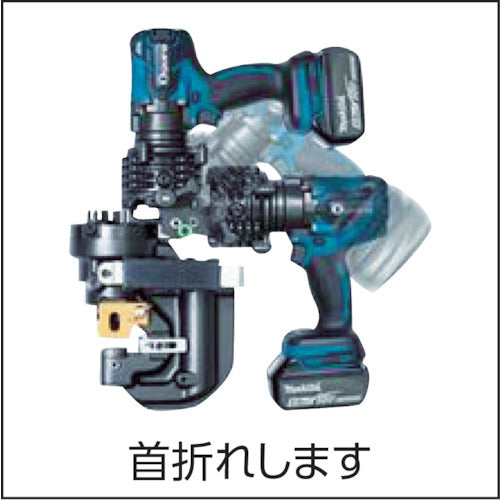

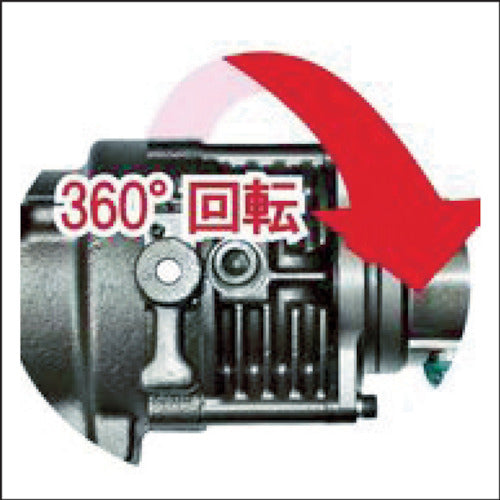

Catalog number: HPC-NF209WBL Features: ● Neck-breaking puncher for mild steel up to 9mm thick. ● When using a dedicated punch, it is possible to make holes up to 10mm thick from φ12 to φ19. (Round hole punch 12X to 19X) ● Equipped with a third-generation stripper (R) that makes it easy to check the hole position and visually check from the right side. ● Equipped with an 18V brushless motor, it achieves high-powered hole punching even though it is cordless. ● The head part can be tilted up to 90° and the motor part can rotate 360°, so it can punch holes in narrow areas. ● The "double-acting" type is used for both "punching" and "pulling out", which is hydraulically operated, eliminating the possibility of the material getting caught during pulling out, allowing you to work without stress. ● The same blade can be used to process general steel, stainless steel, channel steel, aluminum, and copper. ● The protrusion in the center of the punch tip has been enlarged to make it easier to see and align. Applications: ● For drilling steel. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ● Maximum drilling capacity (mm) Iron: t9 x φ20 ● Pocket size (mm): 40 ● Battery voltage (V): 18 ● Battery capacity (Ah): 6.0 ● Charging time (min): 40 ● Maximum drilling capacity (mm) Iron (equivalent to SS400): t9 x φ20 ● Width (mm): 149 ● Depth (mm): 435 ● Height (mm): 336 ● Charging time: Approximately 40 minutes (excluding cooling time) Set contents / accessories: ● Punch 14mm (main unit set) ● Die SB14mm (main unit set) ● Battery pack (BL1860B) ● Charger (DC18RF) ● Spanner (8 x 10mm) ● Hexagonal wrench (3, 4mm) ● Nut tightening rod ● Case
