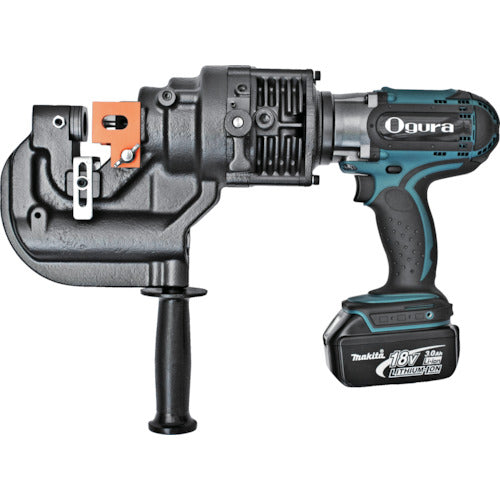

Ogura Cordless Hydraulic Puncher (Double-acting) N Series N209WDS 1 unit

Catalog number: N209WDS Features: ● Cordless puncher compatible with mild steel up to t9. ● Allows continuous punching of 40 holes with hole diameter φ20/plate thickness t9mm (SS400 material). ● Equipped with a lithium-ion battery motor. ● One type of N series blade allows for versatile punching. ● Uses a double-acting hydraulic system for punching and pulling up, which eliminates snagging on materials when pulling up, allowing for stress-free on-site work. Applications: ● For drilling work. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ● Maximum drilling capacity (mm) Iron: t9 x φ20 ● Pocket size (mm): 40 ● Battery voltage (V): 18 ● Battery capacity (Ah): 6 ● Charging time (min): 40 ● Maximum drilling capacity (mm) Iron (equivalent to SS400): t9 x φ20 ● Width (mm): 127 ● Depth (mm): 430 ● Height (mm): 315 ● Maximum drilling capacity (mm) Long hole: 9 ● Charging time: Approximately 40 minutes (excluding cooling time) ● Double-acting Material / Finish: ● Iron Set contents / Accessories: ● Battery pack (BL1860B) ● Charger (DC18RF) ● Punch φ14mm (main unit set) ● Die SB14mm (main unit set) ● Grip ● Spanner (8 x 10mm) ● Hexagonal wrench (3, 4mm) ● Nut tightening rod ● Case
