Ogura Rechargeable Hydraulic Puncher N series (double acting) 18V Maximum punching capacity: Stainless steel Φ18/t6, Stainless steel Φ18/t8 HPC-NF188WBL 1 unit

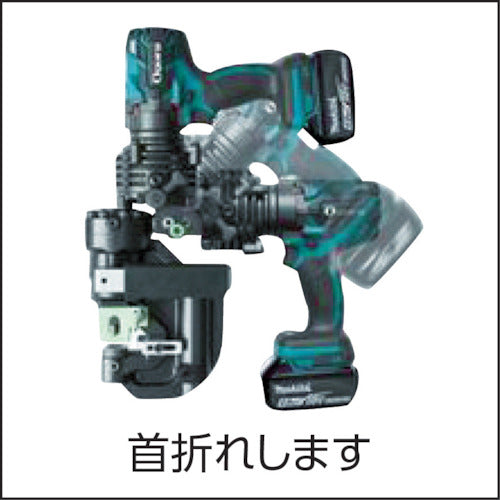

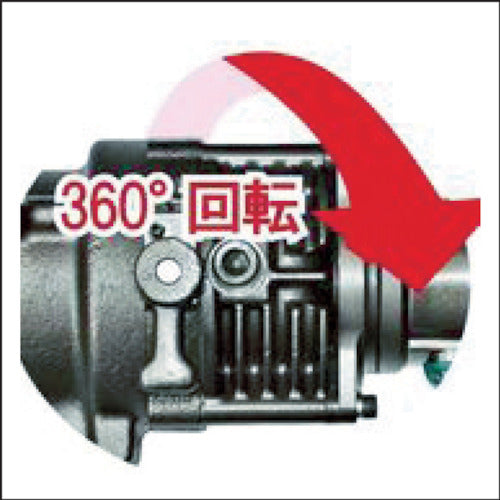

Catalog number: HPC-NF188WBL Features: ●Drilling 32mm holes on φ18/8mm thick plates is possible. ●The head can be tilted up to 90° and the motor can rotate 360°, allowing drilling in narrow spaces. ●Equipped with an 18V brushless motor, it achieves high-power drilling despite being cordless. ●Equipped with a lithium-ion battery motor. ●Effective for drilling holes in existing steel materials with a "neck break". ●Uses a "double-acting" hydraulic system for both "punching" and "pulling out", which eliminates the risk of the material getting caught during pulling out, allowing you to work without stress. ●The same blade can be used to process general steel, stainless steel, channel steel, aluminum, and copper. ●The protrusion in the center of the punch tip has been enlarged to make it easier to see and align. Applications: ●For drilling steel materials. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ18 ● Maximum drilling capacity (mm) Iron: t8 x φ18 ● Pocket size (mm): 38 ● Battery voltage (V): 18 ● Battery capacity (Ah): 6.0 ● Charging time (min): 40 ● Width (mm): 149 ● Depth (mm): 427 ● Height (mm): 308 ● Maximum drilling capacity (mm) SS400 equivalent: φ18/t8 ● Charging time: Approximately 40 minutes (excluding cooling time) Set contents/accessories: ● Punch 12mm (main unit set) ● Die SB12mm (main unit set) ● Battery pack (BL1860B) ● Charger (DC18RF) ● Spanner (8 x 10mm) ● Hexagonal wrench (3/4mm) ● Nut tightening rod ● Case
