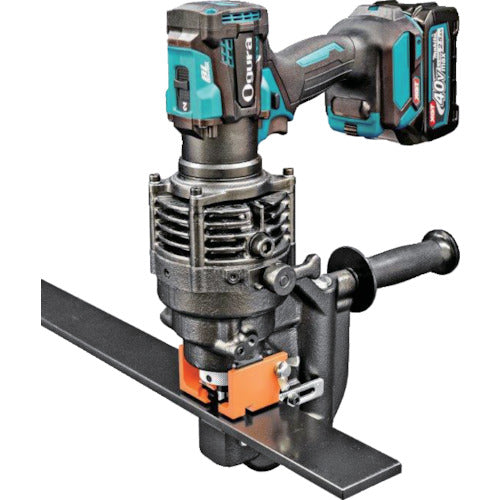

Ogura Electric Hydraulic Puncher (with 2 batteries) N209WMX 1 unit

Catalog number: N209WMX Features: ● This cordless puncher has evolved to be even more powerful and faster at punching holes in mild steel φ20/thickness 9 mm. ● One type of replacement blade for the N series allows for versatile punching. ● A double-acting system is used for punching and lifting, which is hydraulically operated, allowing for stress-free work on site. ● Equipped with a new stripper that makes it easy to check the hole position. ● Two 40V max batteries are standard equipment. Applications: ● For drilling holes in angles and channel steel (sides). Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ● Maximum drilling capacity (mm) Iron: t9 x φ20 (equivalent to SS400) ● Pocket size (mm): 40 ● Battery voltage (V): 40 ● Battery capacity (Ah): 2.5 ● Charging time (min): 28 ● Maximum drilling capacity (mm) Iron (equivalent to SS400): t9 x φ20 ● Width (mm): 129 ● Depth (mm): 398 ● Height (mm): 315 ● Battery charging time: Approximately 28 minutes (excluding cooling time) ● Dimensions (L x W x H): 398 x 129 x 315 mm ● Equipped with 40V max motor Material / Finish: ● Iron, stainless steel Set contents/accessories: ● Battery pack (BL4025) x 2 ● Charger (DC40RA) ● Punch Φ14mm ● Die SB14 ● Grip ● Nut tightening rod ● Hexagonal wrench (3, 4mm) ● Spanner (8 x 10) ● Case
